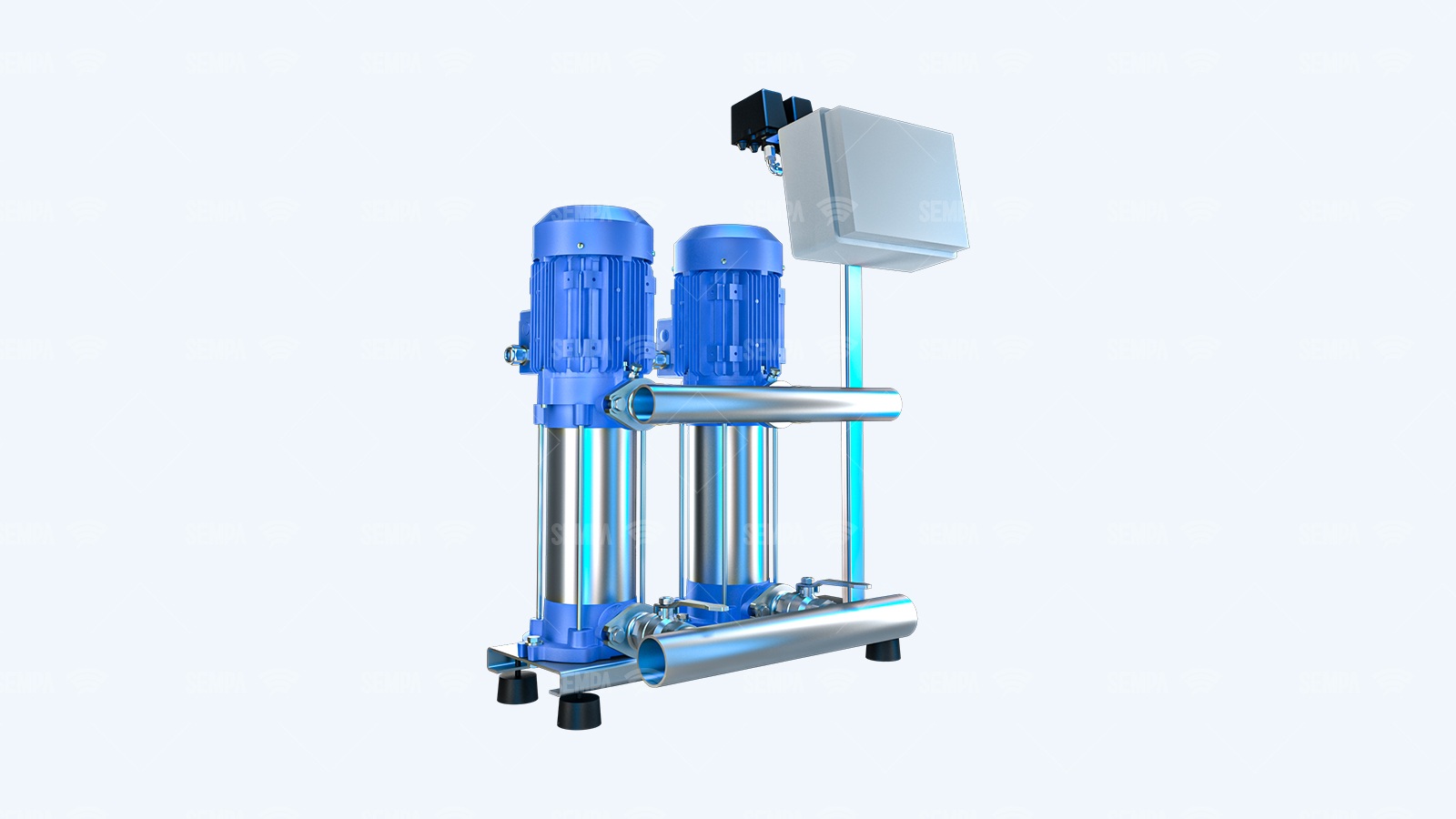

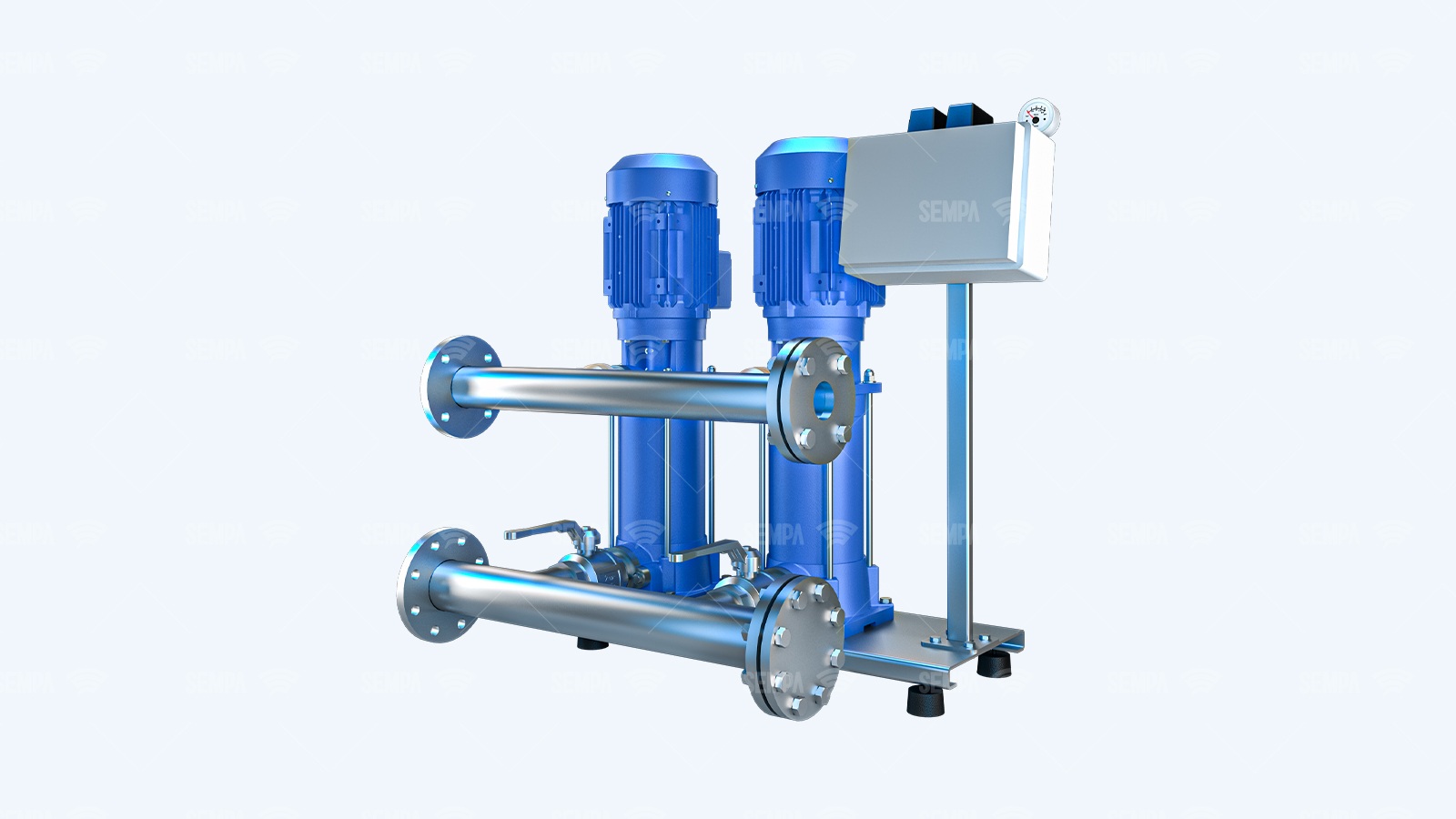

SP Series Booster Pumps Features
EU
US

Discharge Flange	:	DN 32 - DN 50
Capacity	:	Up to 150 m³/h
Head	:	Up to 150 m
Working Temperature	:	0 °C to +60 °C *
Casing Pressure (Pmax)	:	10 bar (16 bar)*

view downloadable content

Discharge Flange	:	1 1/4" - 2"
Capacity	:	Up to 660 GPM
Head	:	Up to 490 ft
Working Temperature	:	+32 °F to +140 °F *
Casing Pressure (Pmax)	:	10 bar (16 bar)*

view downloadable content

Pump Design Features

SP Series boosters are designed for pressing non-corrosive liquids without large solid particles.
Impeller material is glass fiber reinforced noryl.
Vertical pumps with closed impeller can able to be separated.
Balancing holes of the impellers are dynamically balanced and minimizes axial loads.
Cylindrical roller bearings that are resistant to high temperatures and can operate under heavy conditions are used at both ends of the pump.
The discharge flange of the pump is on the motor side and the suction flange is below.
With its vertical shaft structure, it occupies less space than horizontal shaft design.
Boosters are manufactured with horizontal or vertical pumps.
It can be produced as single, double and triple pumps according to the desired flow rate. Up to 6 pumps can be set if needed.
Single pump booster has phase protection and sequencing relay (FKS).
It is available water level float (electric float) in single pump systems.
Multiple sets, phase control in multiple pump boosters and liquid level control are standard features.
Pressure boosters can be frequency controlled upon request It can be manufactured with variable speed.
Boosters it can work automatically and manually in two different modes.

Applications

Building Systems
